Gemma 4 E2B & Per-Layer Embeddings (PLE) — Research Notes

Source: google/gemma-4-E2B-it on HuggingFace
Code: transformers/models/gemma4/modeling_gemma4.py

1. Why E2B is Faster Than a Normal 5B Model 🔗

The name is the key. “E” stands for “Effective” parameters, not total.

Inference speed is gated by compute-heavy parameters (2.3B), not total weight count (5.1B). The remaining ~2.8B lives in embedding tables that cost almost nothing to use — they’re just array index lookups, no matrix multiplications.

So compared to a standard dense 5B model where all 5B parameters participate in heavy compute (attention, FFN), E2B only runs 2.3B parameters through actual computation.

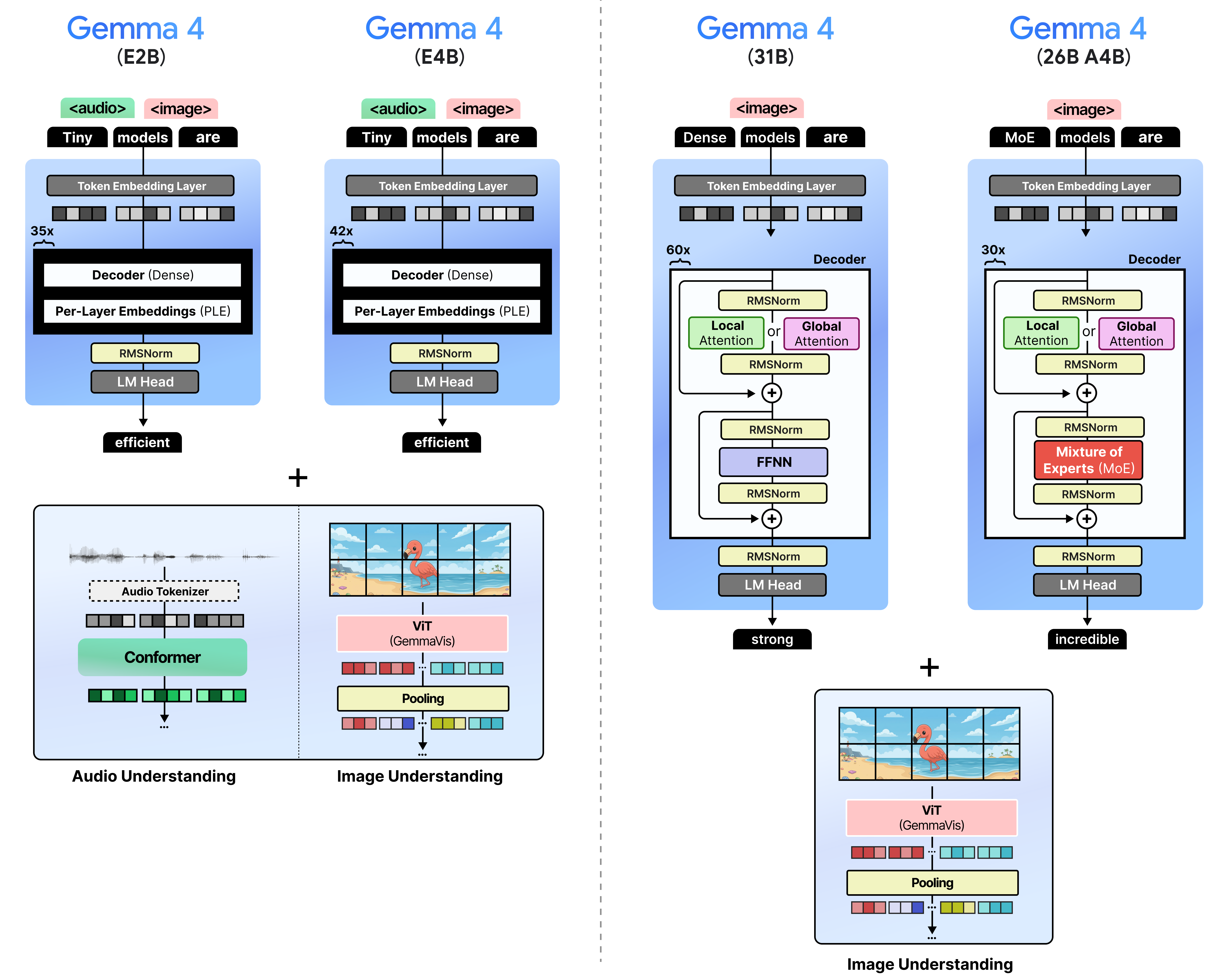

2. The Gemma 4 Model Family 🔗

E2B is NOT MoE. It’s a genuinely small dense transformer. The “few effective params” is not sparsity/routing — the core transformer really is 2.3B. PLE bolts on extra parameters cheaply on top.

3. What is Per-Layer Embedding (PLE)? 🔗

Normal Transformer (e.g. Qwen, LLaMA) 🔗

One embedding table. Runs once at the start:

token_ids → [embedding table] → hidden_states (seq_len × hidden_dim)
     ↓
  Layer 1 (attention + FFN)
     ↓
  Layer 2 (attention + FFN)
     ↓
     ...
  Layer N
     ↓
  output

The token "cat" is looked up once. That fixed vector flows through all layers getting transformed.

E2B with PLE 🔗

There’s still the initial lookup, but each transformer layer also receives a fresh, layer-specific token vector injected after attention + FFN.

token_ids → [main embedding] → hidden_states
          → [ONE big PLE lookup] → split into N layer slices

Layer 1:  attention → FFN → [gated injection of ple_slice_1] → residual add
Layer 2:  attention → FFN → [gated injection of ple_slice_2] → residual add
...
Layer 35: attention → FFN → [gated injection of ple_slice_35] → residual add

The token IDs never disappear — they’re stored as integers from the start and reused for all lookups.

4. Why the Embedding Tables Are So Large (~2.8B extra params) 🔗

Two compounding factors:

1. Vocabulary size: 262,144 tokens — roughly 8× larger than typical models (LLaMA uses ~32K). Needed for 140+ languages + multimodal tokens (image/audio).
2. 35 decoder layers — each gets its own embedding slice.

2.8B / (262,144 × 35) ≈ 305 dims per PLE vector per layer

But because it’s all just array lookups (table[token_id]), these 2.8B parameters cost almost nothing at runtime — no compute, just memory reads.

5. Exact Implementation (from source code) 🔗

Step 1 — One big lookup upfront 🔗

Google’s implementation is smart: rather than doing 35 separate lookups inside the layer loop, they do one giant lookup before the loop starts.

# embed_tokens_per_layer shape: (vocab_size, num_layers × per_layer_dim)
# Single lookup gives ALL layers' embeddings at once
per_layer_inputs = embed_tokens_per_layer[input_ids]
# reshape to: (batch, seq_len, num_layers, per_layer_dim)

Step 2 — Blend PLE with main embedding projection 🔗

The per-layer input is not just the raw PLE lookup. It’s combined with a projection of the main embedding:

def project_per_layer_inputs(inputs_embeds, per_layer_inputs):
    # Project main embedding down to per-layer space
    per_layer_projection = per_layer_model_projection(inputs_embeds)
    per_layer_projection = reshape(..., num_layers, per_layer_dim)
    per_layer_projection = layer_norm(per_layer_projection)

    # Combine: raw token identity + initial embedding perspective
    return (per_layer_projection + per_layer_inputs) * 2**-0.5  # scale by 1/√2

So per_layer_input = (PLE lookup + main embedding projected) × 0.707

Step 3 — Gated injection inside each decoder block 🔗

This is the most surprising part. It’s not a simple addition — it’s a GLU-style gate:

# At the END of each transformer layer (after attention + FFN):

residual = hidden_states
hidden_states = per_layer_input_gate(hidden_states)   # project hidden DOWN to per_layer_dim
hidden_states = act_fn(hidden_states)                  # activate → becomes a gate
hidden_states = hidden_states * per_layer_input        # element-wise multiply with PLE slice
hidden_states = per_layer_projection(hidden_states)    # project back UP to hidden_dim
hidden_states = rms_norm(hidden_states)
hidden_states = residual + hidden_states               # residual add

The current evolved hidden state controls how much of each PLE dimension gets injected. If a given dimension of per_layer_input isn’t relevant at this point in the computation, the gate suppresses it.

Full Data Flow 🔗

input_ids
   │
   ├──→ embed_tokens(input_ids)           → inputs_embeds (main embedding)
   │
   └──→ embed_tokens_per_layer(input_ids) → shape (batch, seq, 35, 305)
              │
              └── project_per_layer_inputs(inputs_embeds, ...)
                        │
                        ▼
              per_layer_inputs: (batch, seq, 35, 305)
              [blend of PLE lookup + main embedding projection, scaled 1/√2]

Loop over layers i = 0..34:
   hidden = attention(hidden)
   hidden = ffn(hidden)
   gate   = act_fn(W_gate @ hidden)          # shape: (batch, seq, 305)
   inject = gate * per_layer_inputs[:,:,i,:] # element-wise multiply
   hidden = hidden + W_proj @ inject         # project up + residual

6. Why This Works 🔗

• Normal model: The initial embedding must encode everything useful for all 35 layers in one vector. That’s a lot of pressure.
• PLE: Each layer gets a layer-specific refresh of token identity information — “at layer 15, here’s what token #42 means at this depth.”
• The gating makes it adaptive: the current hidden state decides how much of the token identity refresh to absorb. Unlike a plain residual add, irrelevant dimensions get suppressed.

7. Comparison with Other Efficiency Techniques 🔗

PLE is essentially unique to Google’s Gemma 3n/4 E-series. No other major production model uses it as of early 2025.

8. Related Reading 🔗

Note: There is no standalone peer-reviewed paper on PLE yet. It exists only in Google’s model cards, blog posts, and the HuggingFace Transformers source code.

9. Key Takeaways 🔗

1. E2B has 5.1B total params but only 2.3B effective — the gap is PLE embedding tables
2. PLE is not MoE — it’s a dense model with a clever embedding trick
3. The big vocab (262K) × 35 layers is why the embedding tables are so large
4. Implementation is smarter than expected: one giant lookup upfront, not 35 separate lookups
5. Combination is a GLU-style gate: the hidden state controls how much PLE info flows in per layer
6. No one else is doing this yet — PLE is a Google-proprietary technique as of early 2025
